TBS - 3D LIGHT

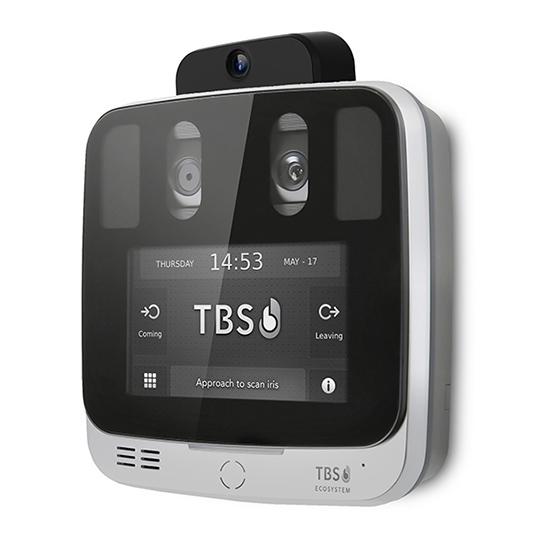

3D LIGHT - TBS Terminal


Shed light on every identity with 3D LIGHT, for a contact-free, hygienic and friendly experience for all users. A multifunctional touchless terminal that provides face detection and guides the user to positioning in quickly and easily.

HYBRID DETECTION
Combining identification with iris recognition, mask controls and temperature sensor bodily (optional), 3D LIGHT allows you to achieve an experience without prejudices and determines the true identity user with maximum precision.

LARGE CAPACITY
3D LIGHT offers the convenience of facial recognition combined with the reliable security of iris biometrics for accurately identify up to 50,000 users.

TOTAL CONSENT
It does not matter if the user wears glasses or contact lenses, or if it covers the head or face. 3D LIGHT identifies all users as long as they detect even a single iris, without any risk of false refusal. And it works for each user, every time.

Main Features:

Part number 3D LIGHT
Category Terminals
Template Iris
Technology Iris + Face Scan
Touchless Yes
DB limit 1:N 10000
DB limit 1:1 100000
Access Control Yes
Time & Attendance Yes
RFId (Mifare) Yes
Template on card -
Display 5.0"
Liveness detection n.a.
Interfaces RS232, RS485, Wiegand out, OSDP, Relay NO/NC, 2xGPIN
Network LAN RJ45 POE (opt. splitter), WiFi (opt.)
Anti-tampering -
Operating Temp. °C 0 ÷ +45
Humidity % 10 ÷ 90
Power supply 12 ÷ 24 Vdc
Max power 16 W
Audio feedback Beeper
Ingress protection IP30
Dimensions (L H W) mm. 166 x 195 x 44.5
Notes / more Power supply included.
Thermal Sensor optional module available.
Wall mount box (indoor use only) available.
