TBS - 3D FLY

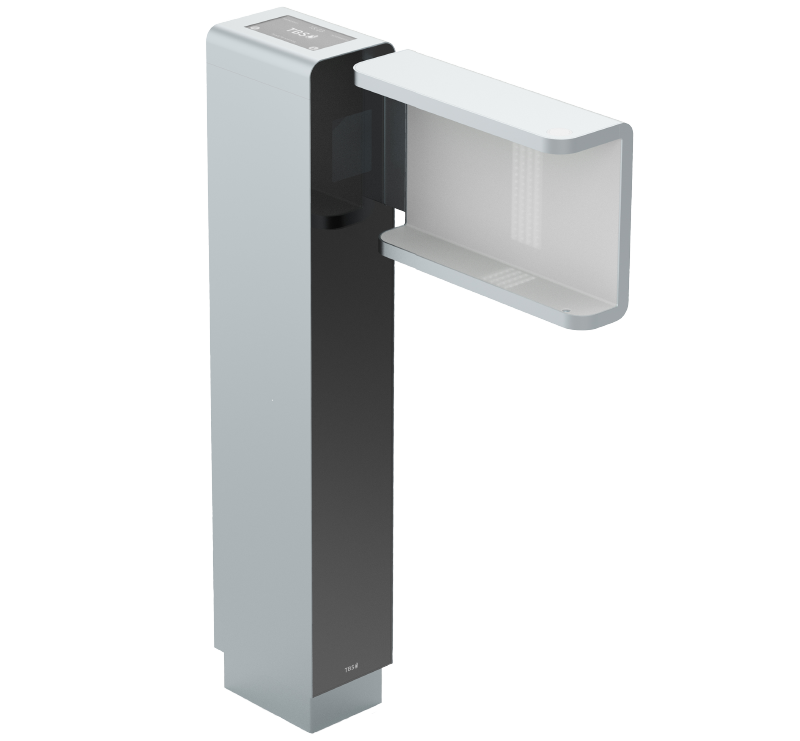

3D FLY - TBS Terminal


3D FLY is the high-speed, high-precision hand scanner for high-flow environments. It captures the 4 finger fingerprints quickly and effectively, offering speed and accuracy of identification unprecedented for a non-contact user experience. Eliminates bottlenecks in high traffic areas pedestrian.

SMART IDENTIFICATION
The high-speed camera sends the hand image to a fast internal processor, using algorithms AI-assisted owners to optimize pairing times. TBS doesn’t compromise between speed and security: 3D FLY offers the best of both worlds.

HYGIENE WITHOUT TOUCH
Touchless technology not only provides greater identification accuracy, but also a solution to needs hygiene of our times. The ideal device for sensitive applications in the healthcare industry, directional centers corporate or venue fairs and events.

FOUR-FINGER TECHNOLOGY
A biometric "hand" model can hold up to four finger patterns. This means that the weight identification is not placed on a single finger but shared between four, offering unparalleled precision.

Main Features:

Part number TBS 3D Fly
Category Terminals
Template Hand
Technology Finger on the fly
Touchless Yes
DB limit 1:N 10000
DB limit 1:1 100000
Access Control Yes
Time & Attendance Yes
RFId (Mifare) Optional
Template on card -
Display 7.0"
Liveness detection n.a.
Interfaces RS232, RS485, Wiegand out, OSDP, 2xRelays NO/NC, 2xGPIN, 2xGPOUT
Network LAN RJ45
Anti-tampering -
Operating Temp. °C 0 ÷ +45
Humidity % 10 ÷ 90
Power supply 24 Vdc
Max power 100 W
Audio feedback Loudspeaker
Ingress protection IP44
Dimensions (L H W) mm. 716 x 1100 x 170
Notes / more -
