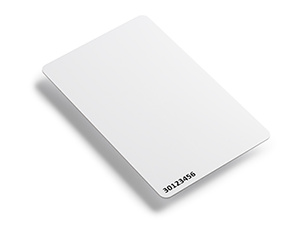

The ISO Combi Card is a battery-free UHF read only card, suitable for long-range applications. The ISO Combi Card is particularly suitable when a single card should be used for different vehicles, or when the card should also be used together with an access control system for people identification. The card can be read from both sides, and is printable on both front and back. The ISO Combi Card is delivered in continuous running number series and the SecureMarkID® is discretely marked with black print. The card can be supplied with a combination of SecureMarkID® and proximity technology.
The ISO Combi Card has a read range of up to 7 metres, when read by a TagMaster XT-3 Reader. Conforming to RAIN, the ISO Combi Card is supplied pre-programmed with locked EPC field using the TagMaster SecureMarkID®. SecureMarkID® ensures that each card is unique and guarantees that a card cannot be changed or duplicated.
The ISO Combi Card has, as all TagMaster cards, unsurpassed quality and performance and is designed to work with the TagMaster portfolio of UHF Readers. By selecting both cards and Readers from TagMaster, this will ensure an extremely reliable system and problem-free operation. By using TagMaster SecureMarkID® the installation and start-up of the system will be extremely efficient and will only require a minimum of effort.
Key Features:
Read range of up to 7 metres
Battery-free operation
RAIN compliant
SecureMarkID® combined with prox technology
Easy for user to carry card
Product Code
Description
228000
ISO Combi Card SecureMarkID®
228010
ISO Combi Card SecureMarkID®
+ MiFARE Classic 1k
228020
ISO Combi Card SecureMarkID®
+ MIFARE DESFire EV1 2k
Technical Information:
Read range
EU: Up to 6 metres (20 ft). US: Up to 7 metres (23 ft)
Operating frequency
865–868 MHz.
Dimensions
86 x 54 mm (3.4 x 2.1 inch). Thickness 0.8 mm (0.031 inch)
